Panorama 7Stars Aluminium Minimalist sliding doors
Panorama 7Stars Aluminium Minimalist sliding doors
Through Panorama 7Stars by QFORT we offer you an aluminium sliding door system with an elegant, minimalist design and high performance over time.
Panorama 7Stars provide a large glazed surface, with a high visibility towards the outside environment, as well as an increased brightness of the room, allowing the penetration of a large amount of natural light, also having an increased water-tightness due to the latest technical specifications.
Advantages Panorama 7Stars Aluminium sliding doors
- Panorama by QFORT sliding systems are characterised by a stylish, minimalist design, being dedicated to the exclusive style lovers.
- The narrow profiles and the possibility of having them embedded into walls and floors help to save a considerable amount of space in the house.
- The large glazed area of the Panorama by QFORT aluminium sliding systems provides high visibility of the outdoor environment, as well as a high light level, allowing penetration of large amounts of natural light.
- Representing the definition of modern, elegant and minimalist style, Panorama by QFORT sliding systems include state-of-the-art technological systems that are easy to handle and use. Thus, you can opt for manual or electric control.
- Panorama by QFORT sliding systems are suitable for any type of space and are available in various construction options with 1, 2, 3, 4 or 6 mobile sashes offering the possibility of joining two 90° sliders when the available space requires it.
- OPTIONAL: Panorama by QFORT aluminium sliding systems can be equipped with a drainage gutter system specially designed to eliminate the risk of water infiltration, thus increasing the overall comfort of your home.

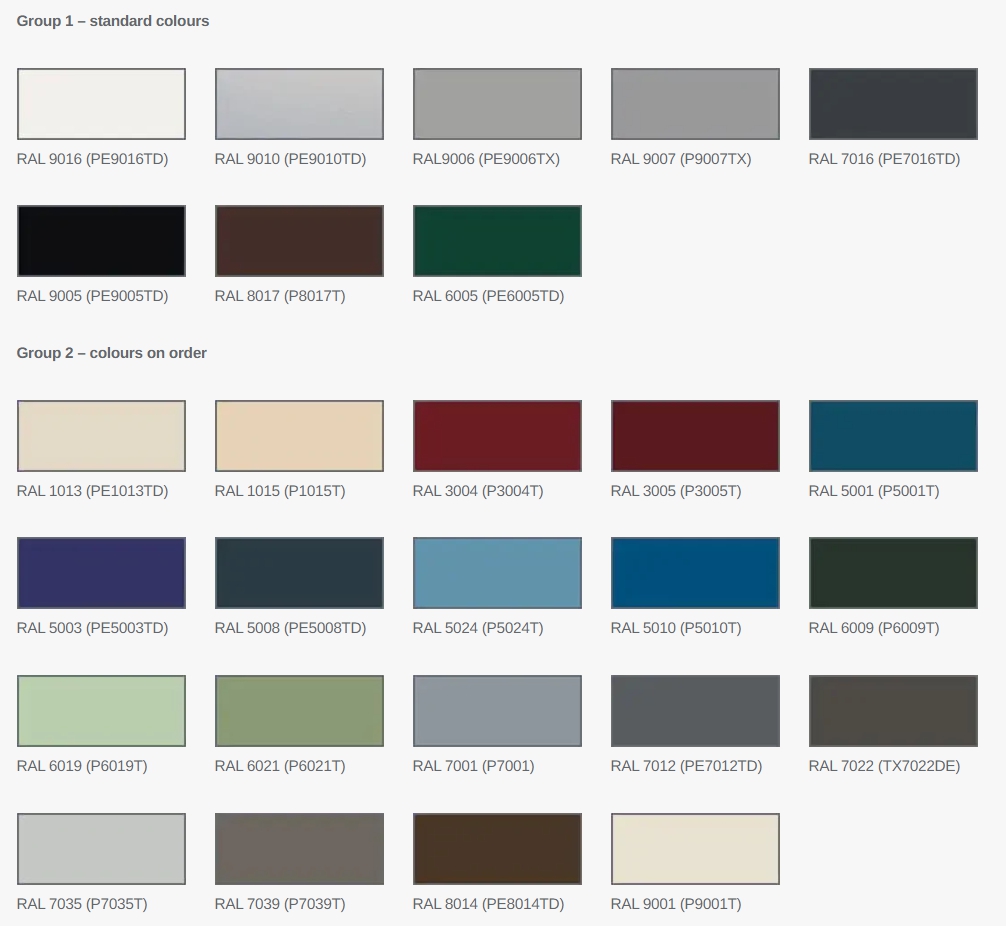

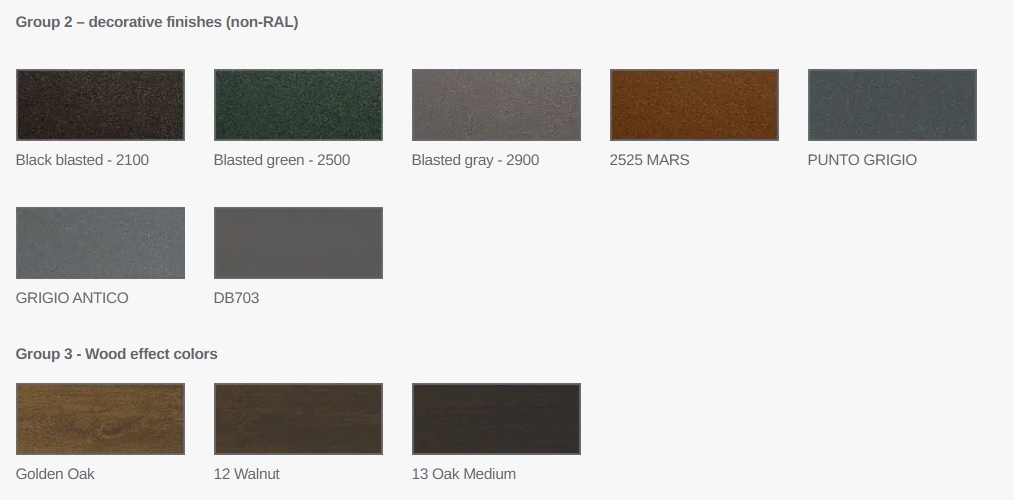

Available colours for Panorama 7Stars Aluminium sliding doors
The Panorama by QFORT sliding profiles are available in multiple colour variants. The RAL colours are delivered with structural finish, as standard.

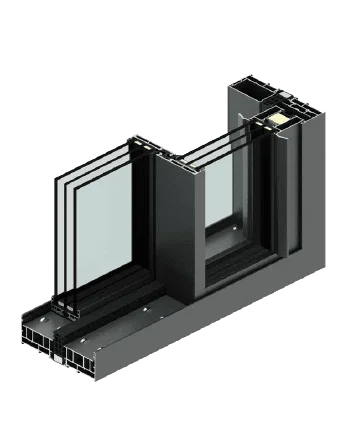

Technical details of Panorama 7Stars Aluminium sliding doors
Features of Panorama by QFORT Panorama 7Stars Aluminium Sliding Systems
The Panorama 7Stars by QFORT sliding systems have the following features:
- Central interlock size (meeting point of the sash): 25mm;
- Assembly depth: two-rail frame – 180mm; three-rail frame – 278mm;
- Exterior wall thickness of profiles: sash 2mm, frame 1.5mm;
- Thermal insulation coefficient Uw ≥ 0.98 W/m²K*;
- Elegant and minimalist design;
- Large glazing;
- Weatherproof;
- Increased security;
- There is the possibility of constructions with electrical wings;
- There is the possibility of pocket-sliding system.
System indicated for sashes with a maximum width of 3000 mm and a maximum height of 3600 mm.

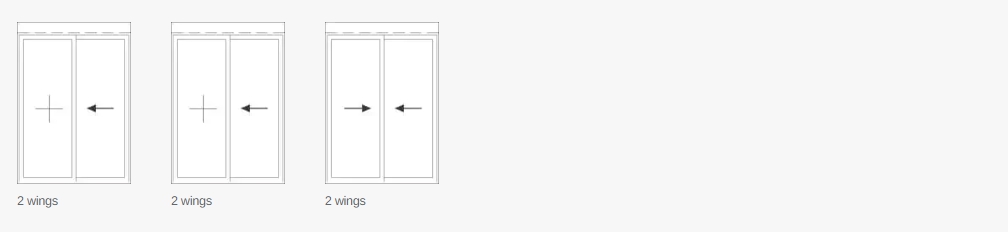

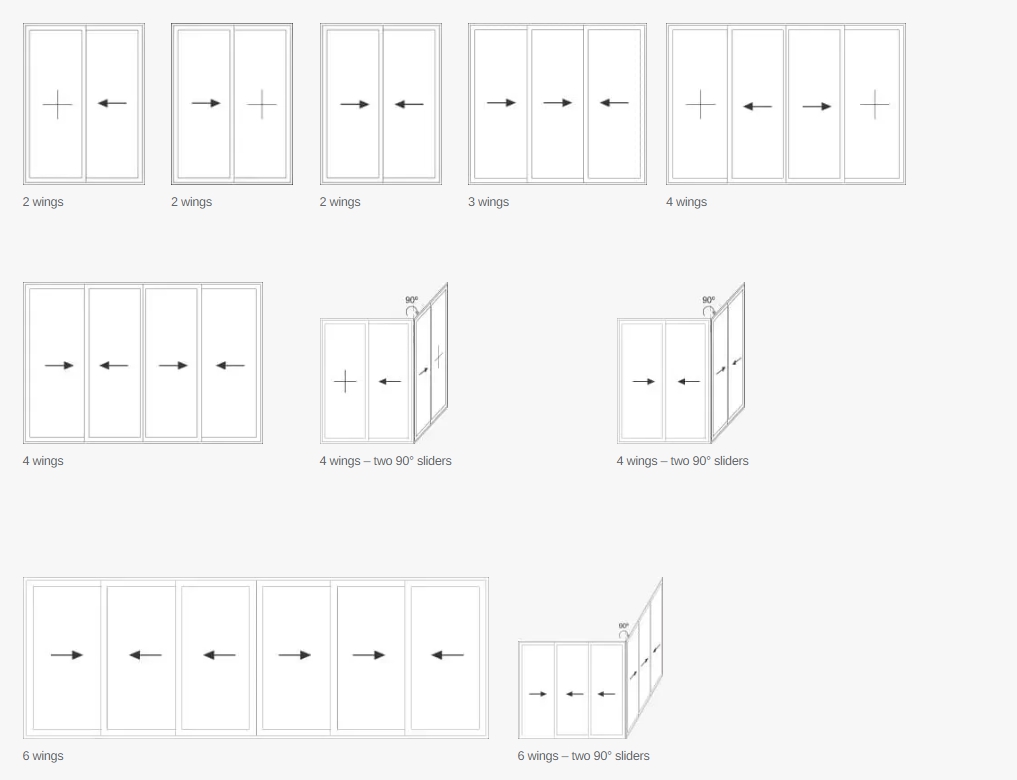

Types of opening of Panorama 7Stars Aluminium sliding doors
The Panorama by QFORT sliding systems can be operated either manually or electrically via two- or four-channel remote controls, or via photocell.
For the two-wing type of opening, when both can be opened, it is possible to use an electrical opening sash and a manual opening sash.
Electric control
Manual control

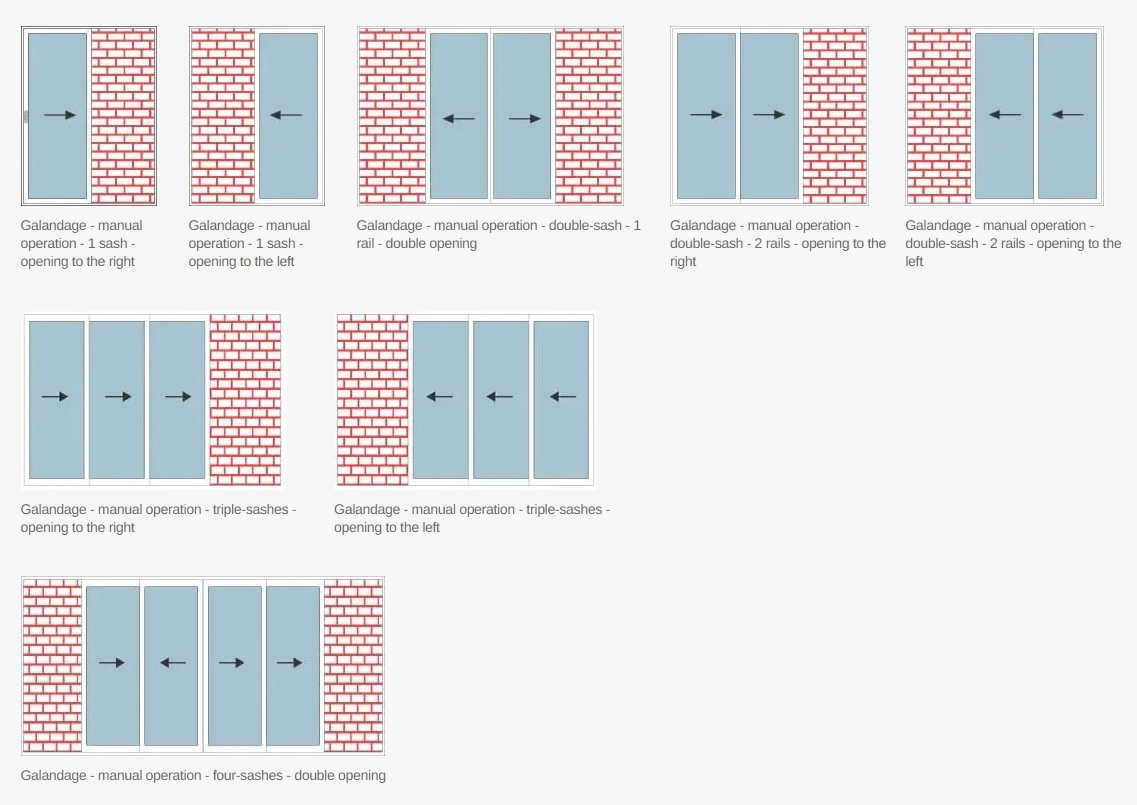

Pocket-sliding system of Panorama 7Stars Aluminium sliding doors
This system was designed to allow the largest possible opening by sliding the sash into the wall.
