6Stars PVC Windows

Technical Details - 6Stars PVC Windows

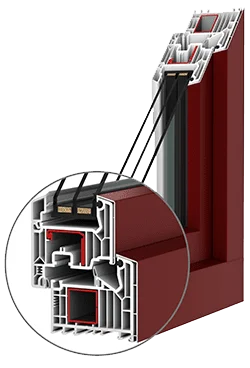

Number of chambers and mount depth for 6Stars PVC Profile

• 7 chambers in the fixed window frame
• 6 chambers in the window frame (moveable)
• 82 mm width (mount depth)
• outer wall thickness of PVC profiles: ≥ 2.8 mm

Both the number of chambers of the PVC profile and the mount depth and the thickness of the outer wall directly influence the heat-insulation and noise-insulation features of a heat-insulation window.

Gaskets – 6Stars PVC Profile

• 3 sealing gaskets (2 on the frame and 1 on the window frame)
• 2 glass support gaskets
• a third gasket, called a median gasket, located between the two sealing gaskets on the window frame, increasing the sealing capacity, raising the noise and heat-insulation levels, as well as providing additional weather protection

6Stars View Heat Insulation

• Uw = 0,83 W/m²K for triple glazing unit with Ug = 0,6 W/m²K
• Uw = 0,76 W/m²K for triple glazing unit with Ug = 0,5 W/m²K

Uw value is being calculated for a single wing standard window of 1230x1480mm, with an area of 1,82m² and warm spacer.

Uw and Ug values may vary according to the glazing unit type used. For a precise value, please check on QFORT offers.
